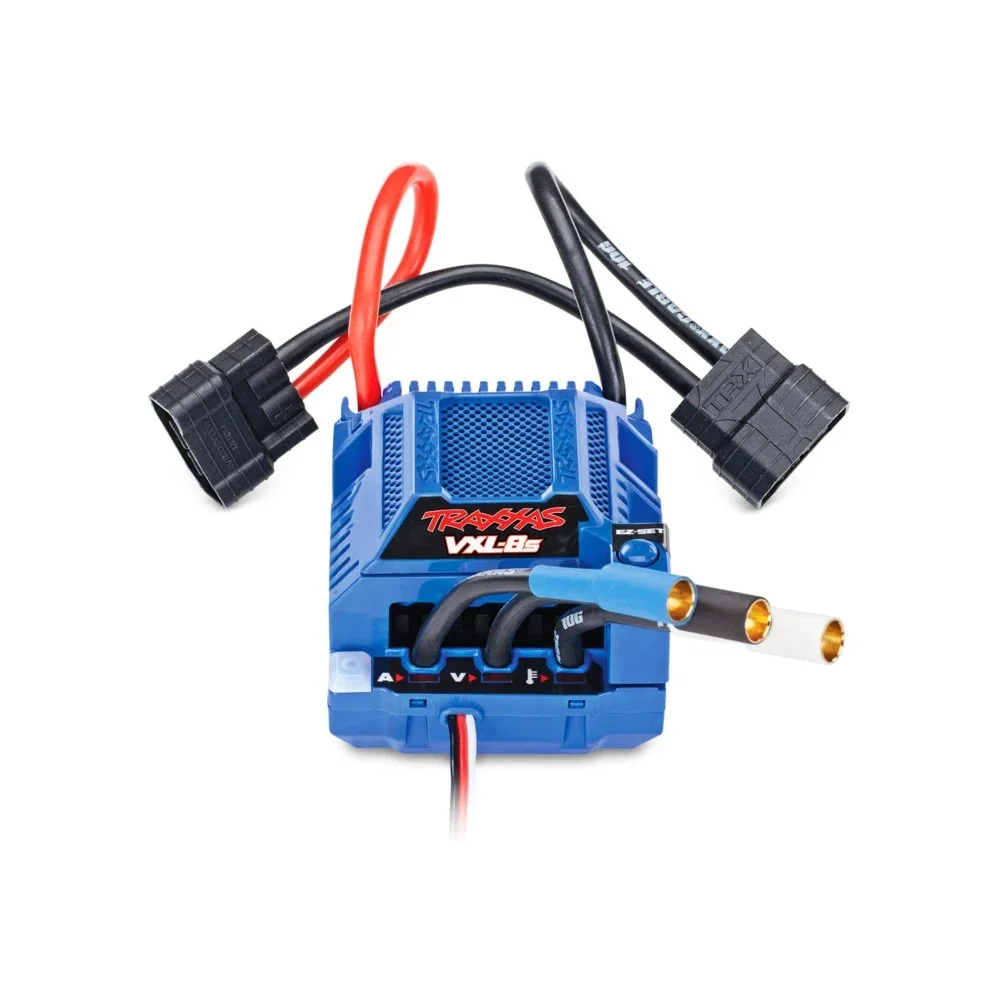

Traxxas VXL-8S Waterproof ESC Electronic Speed Control

The Traxxas VXL-8s Waterproof Electronic Speed Control is built to handle the demands of the most powerful Ready-To-Run RC vehicles. Specifically designed for high-performance brushless systems, this ESC delivers consistent, reliable power with intelligent safety features, robust waterproofing, and real-time telemetry capabilities. Whether you’re bashing with an XRT or launching wheelies with an X-Maxx, the VXL-8s is engineered for pure power and control.

Includes:

• (1) Traxxas VXL-8s Electronic Speed Control

Features:

• Waterproof case with sealed electronics for all-weather performance
• Real-time telemetry support via optional wireless module
• EZ-Set one-button programming with three selectable drive profiles
• Built-in cooling fan with two-stage thermal shutdown protection
• 6.5mm gold-plated motor connectors for maximum power transfer
• Integrated low voltage detection for LiPo battery protection
• Patented Training Mode reduces output to 50% for new drivers
• Locked Rotor Protection and Battery Over-Voltage Protection
• High-current 10-gauge wiring with patented Traxxas connectors

Specifications:

• Input Voltage: 4S–8S LiPo (Max 33.6V)
• Case Dimensions: 2.23 x 2.83 x 1.81 in (58 x 72 x 46 mm)
• Weight: 215.5 g (7.60 oz)
• Motor Connectors: 6.5mm Traxxas bullet connectors
• Resistance: 0.00075 ohms forward and reverse
• BEC Voltage: 6.0V
• BEC Continuous Current: 10A
• BEC Peak Current: 20A
• Power Wire: 10-gauge Maxx cable
• Input Harness Wire: 26 gauge / 100mm
• Low Voltage Detection: Two-stage, switchable
• Thermal Protection: Two-stage shutdown
• Drive Profiles:
• Sport Mode: 100% Fwd / 100% Brake / 100% Rev
• Race Mode: 100% Fwd / 100% Brake / No Rev
• Training Mode: 50% Fwd / 100% Brake / 50% Rev
• Programming: EZ-Set single-button
• Motor Types: Brushless
• Ports: RX input, auxiliary fan, accessory port

Compatibility:

• Traxxas Funco Pro Scale Sand Car
• Traxxas X-Maxx
• Traxxas XRT
• Traxxas XRT Ultimate

Engineered for performance and reliability, the Traxxas VXL-8s ESC is a factory replacement part that ensures your vehicle stays in peak condition while delivering all the power and control modern RC drivers demand.
